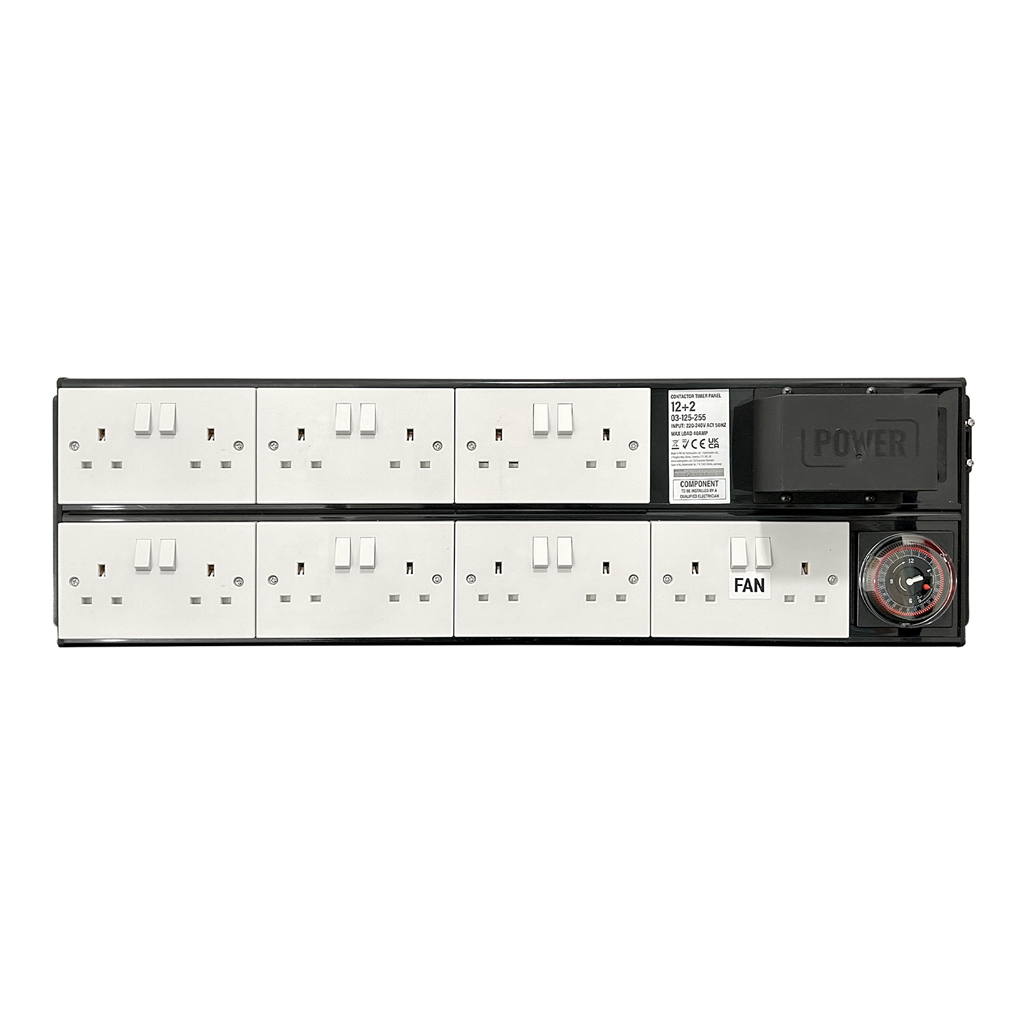

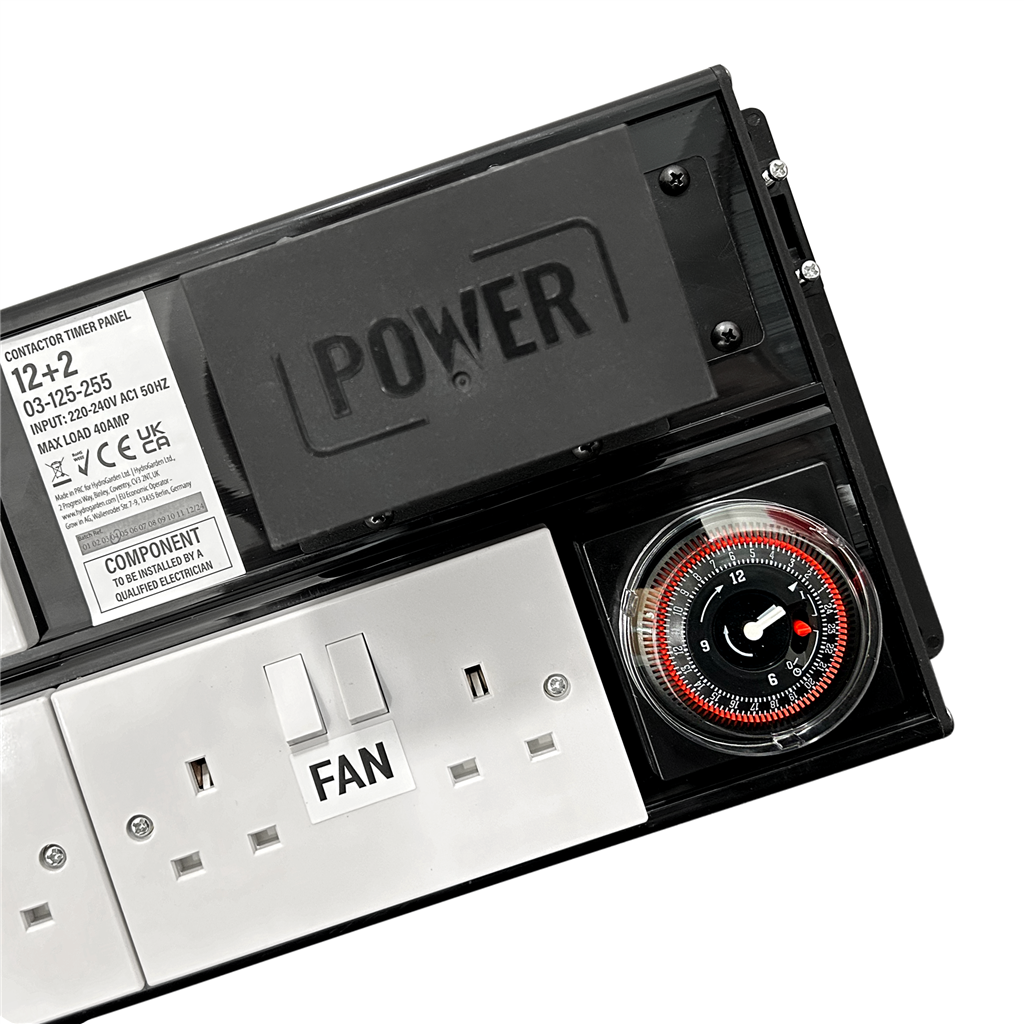

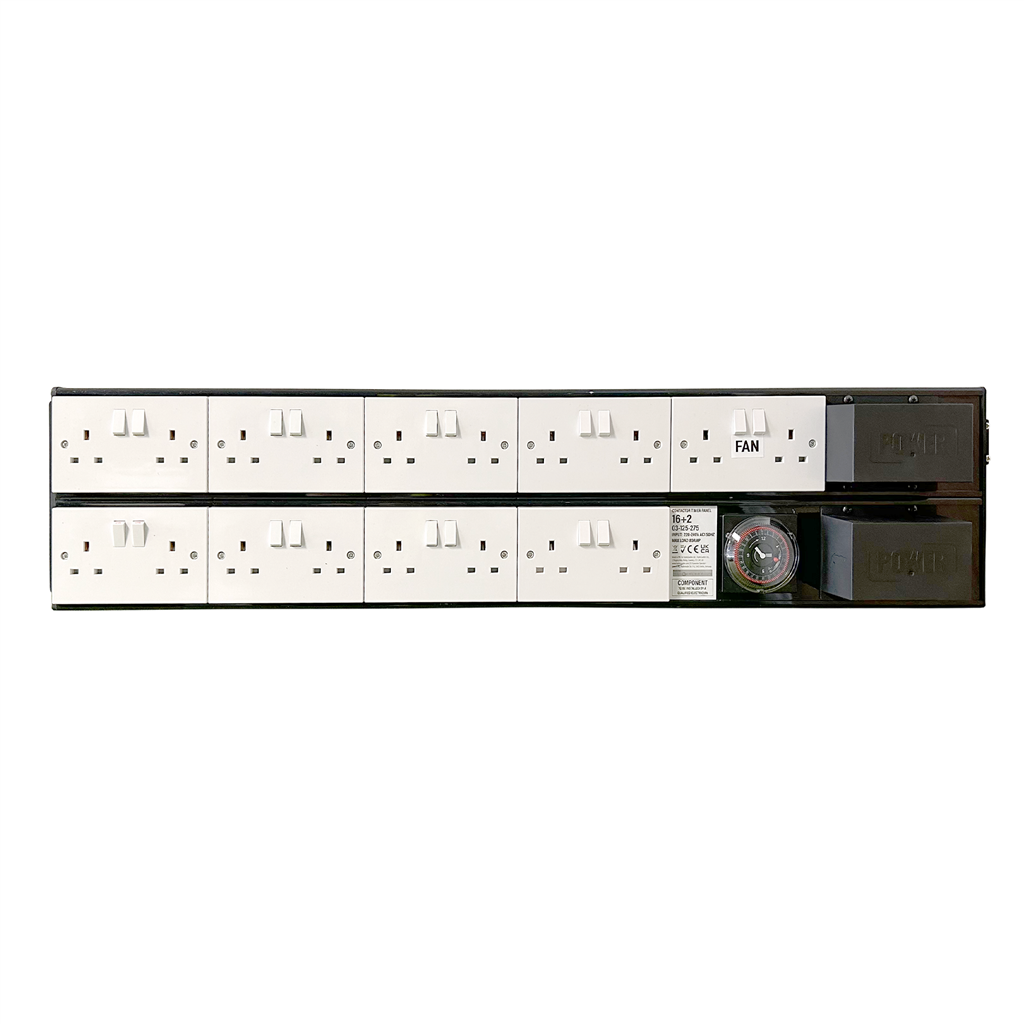

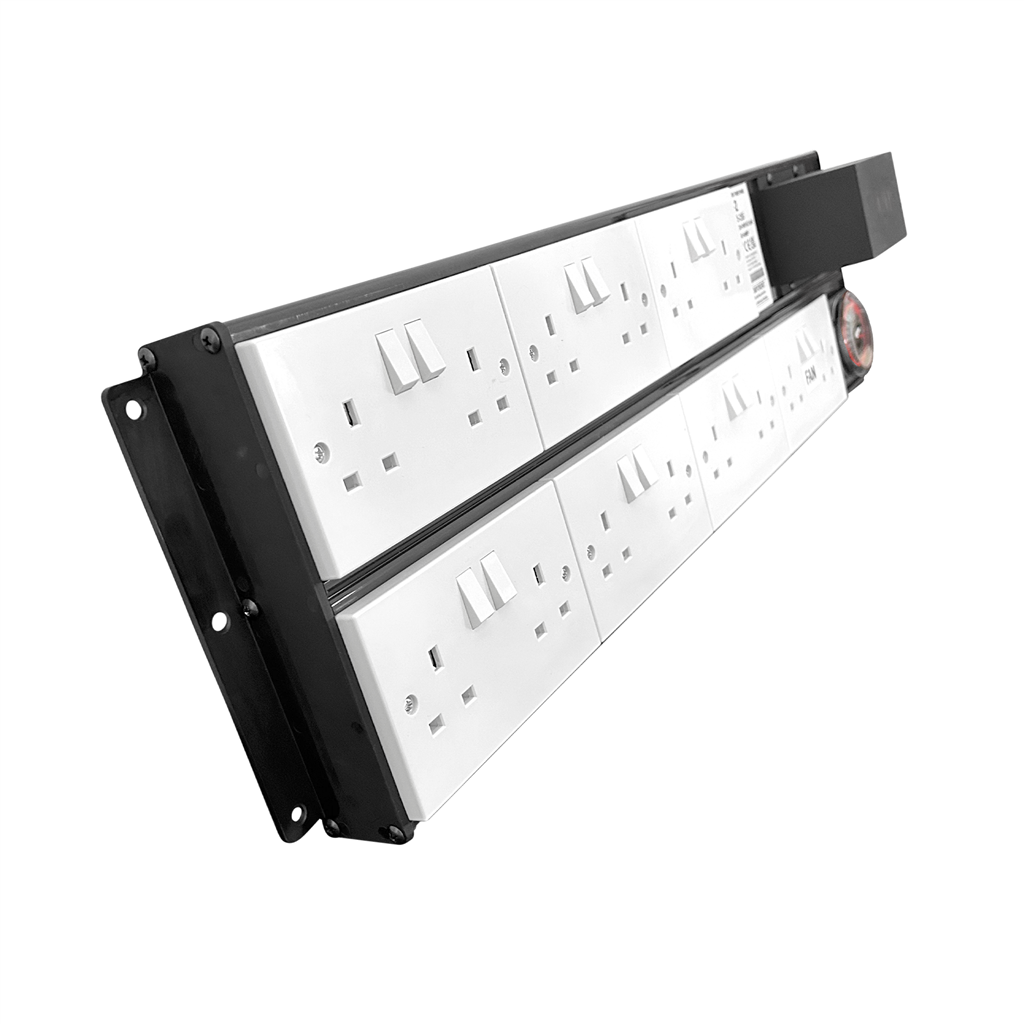

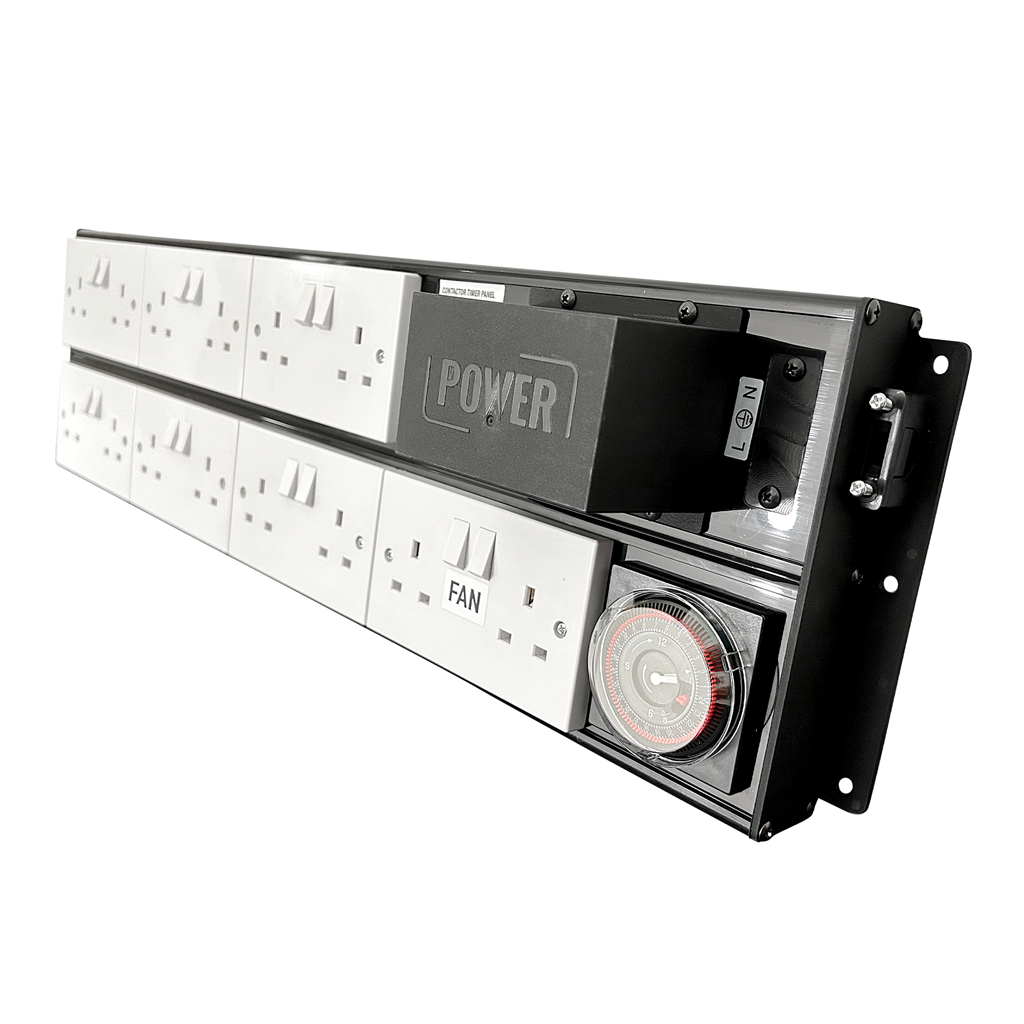

The Contactor Timer Panel enables scheduled operation of heavy load appliance without danger of timer contact burnout. As an electrical component, it must be installed by a qualified electrician or other competent professional to ensure compliance with relevant local regulations. Up to 16 appliances, with a combined total load of 80 amps, may be plugged into the panel and scheduled synchronously over a 24-hour period. The timer has 96 fifteen-minute on/off segments, and can be set to “timed”, “continuously on” or “continuously off”. A further 2 power outlet sockets, marked “FAN”, are not timed, and have a continuous power supply.
Key selling points:
Suitable for scheduling appliances with high inductive loads
Can schedule up to 16 appliances synchronously
2 untimed power outlet sockets
Simple to operate
Technical Specifications:
220-240 V AC1
50/60 Hz
Maximum load 80 A
16 timed output sockets
2 untimed output sockets
Timer – 24 hr, 96 x 15-minute segments. Manual setting.
